Engine pic request for the wiki

[DaiRees]

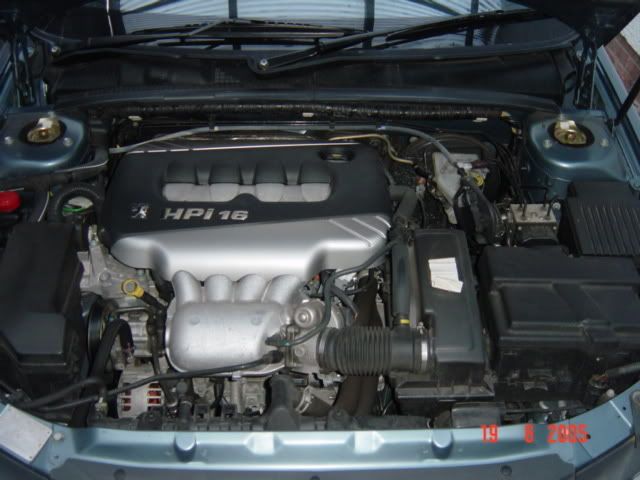

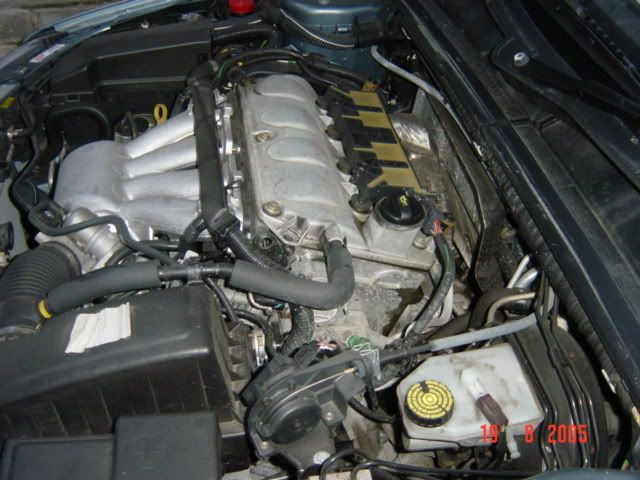

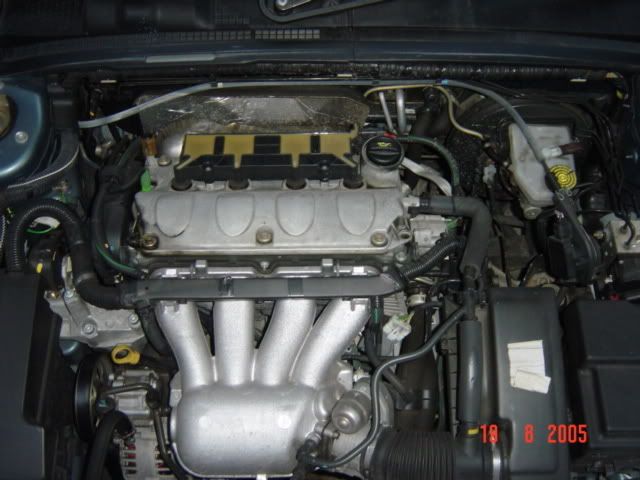

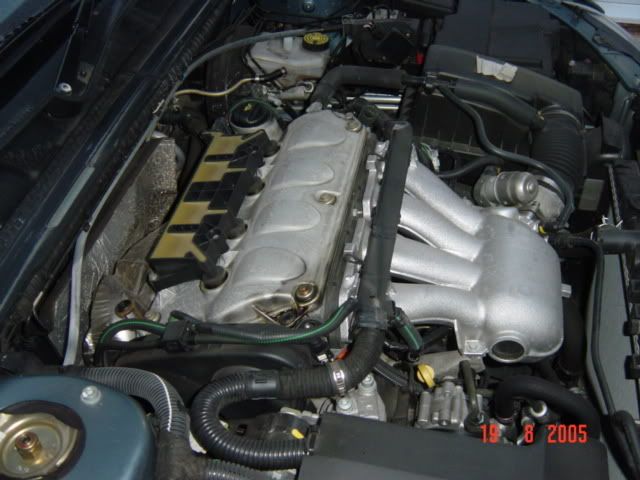

Here's the HPi, with and without the pretty plastic cover

[nutski]

Here's the HPi, with and without the pretty plastic cover

Superb, cheers Dai

[mjb]

dammit if you'd have asked a few hours earlier, i'd have been able to get a pic of a 2.2

[steve_earwig]

I suppose I could do bleeding the bleedin' cooling system. Maybe later, if I'm feeling brave

Eek! That was worrying: I wrote the page, didn't like something and tried to edit it, then I got some sort of conflict error, my page disappeared and I thought I'd broken something. The when I looked at it again it was fixed, was that you guys or is it "idiot-proof"?

[highlander]

Sorry Steve - didn't mean to worry you

I spotted you'd made the article on bleeding the cooling system as a category. I've made the changes for you, and created a "Cooling" subcategory of the "Cooling, Heating and Ventilation" category you made.

I also fixed a couple of weird bits of formatting relating to pictures in your article.

Good article - thanks for submitting it!

[Captain Jack]

2.0 litre HDi 110 bhp

[averagejo]

EW10J4

if you need a better angle let me know but this is just one i had knocking around.

[Doggy]

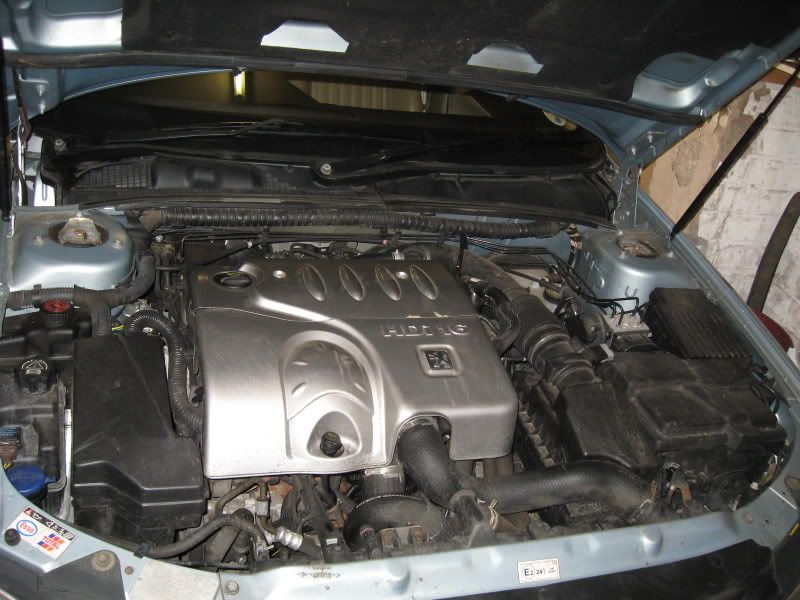

DW12ATED

If you want any different views, (i.e. without acoustic hood), let me know

Thanks for the pic, one without the cover would be good if you get a chance ta.

Sorry I got the engine code wrong first time - its DW12TED4, (not DW12ATED)

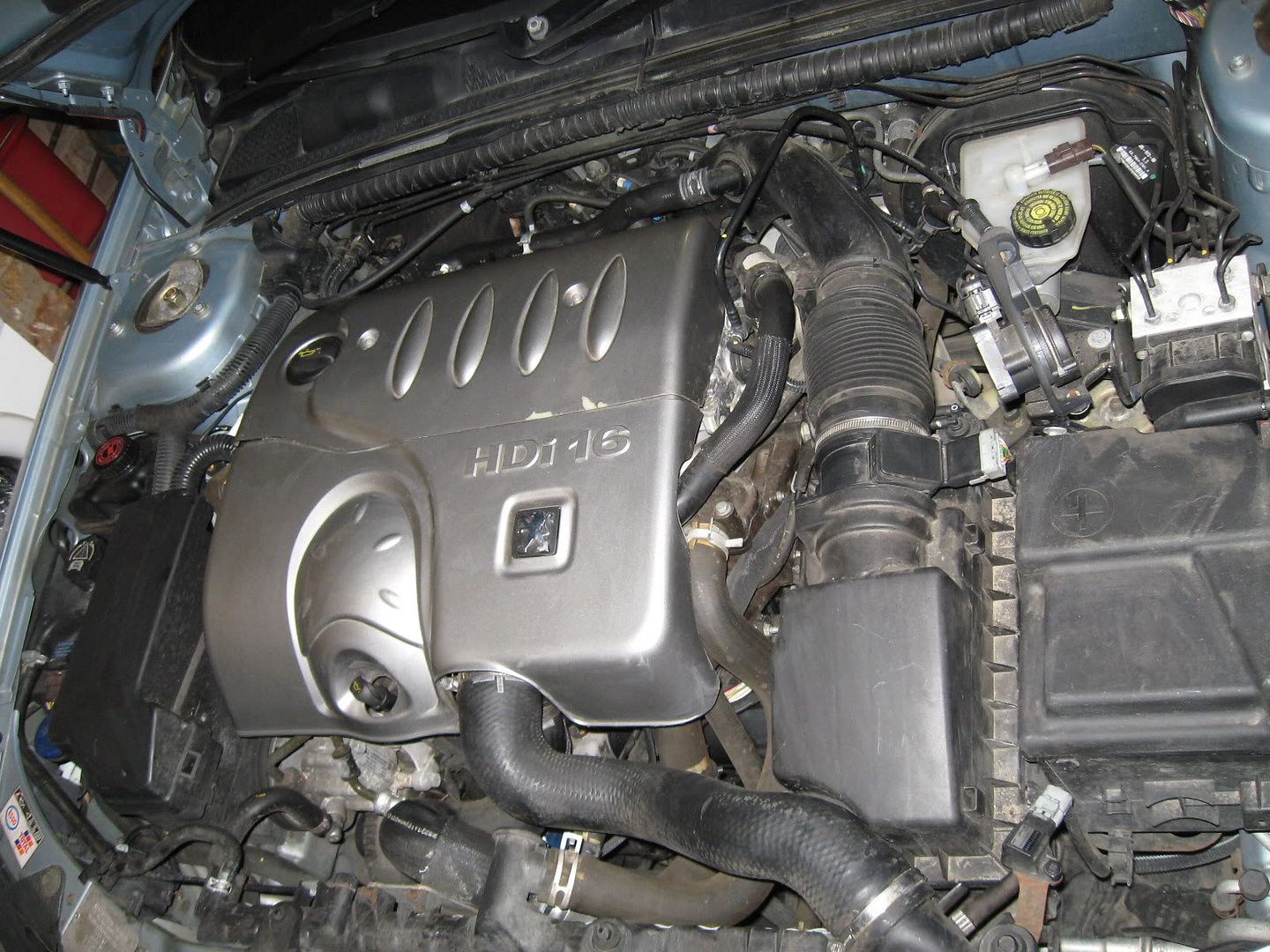

Here's some more images:

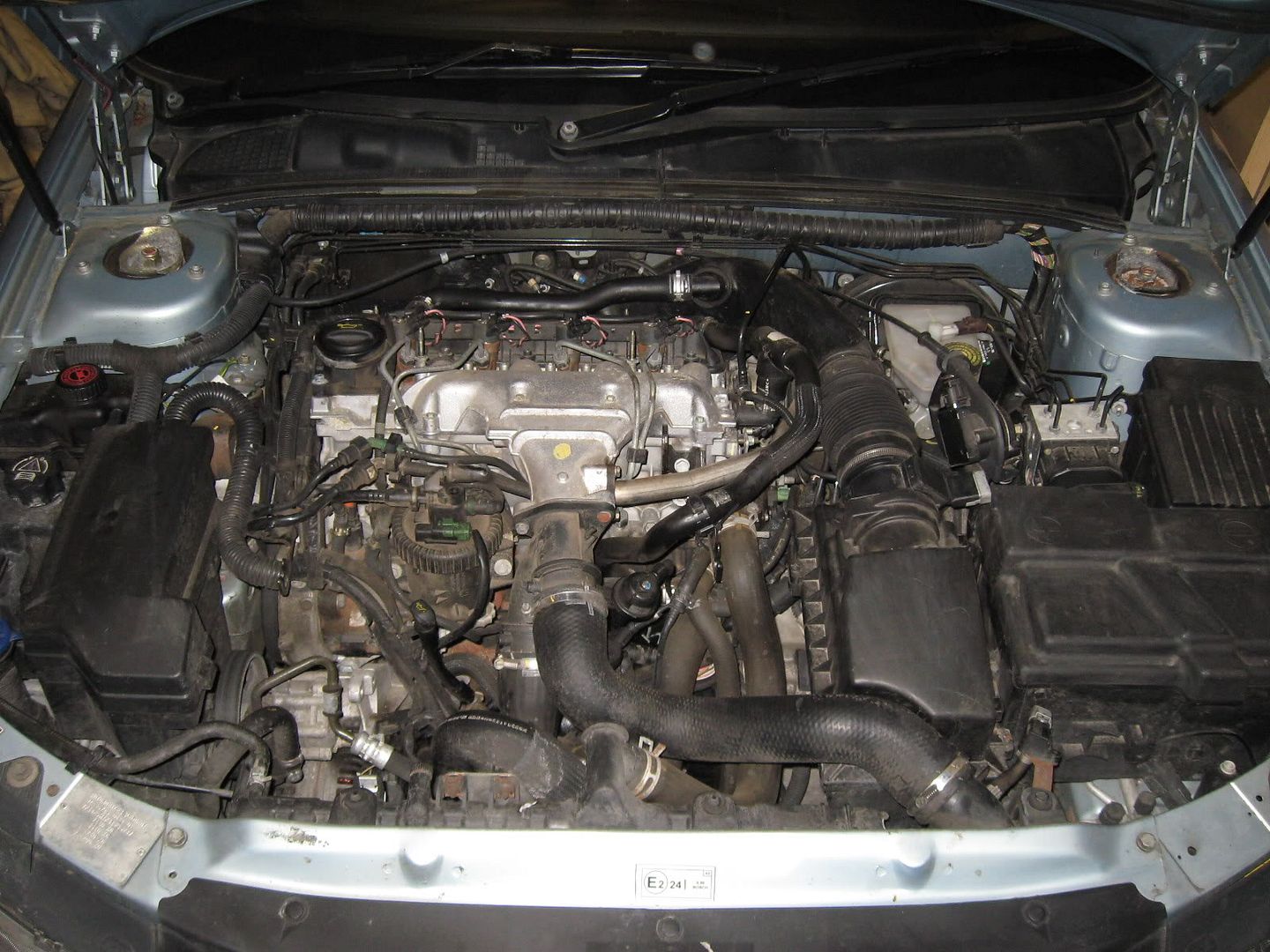

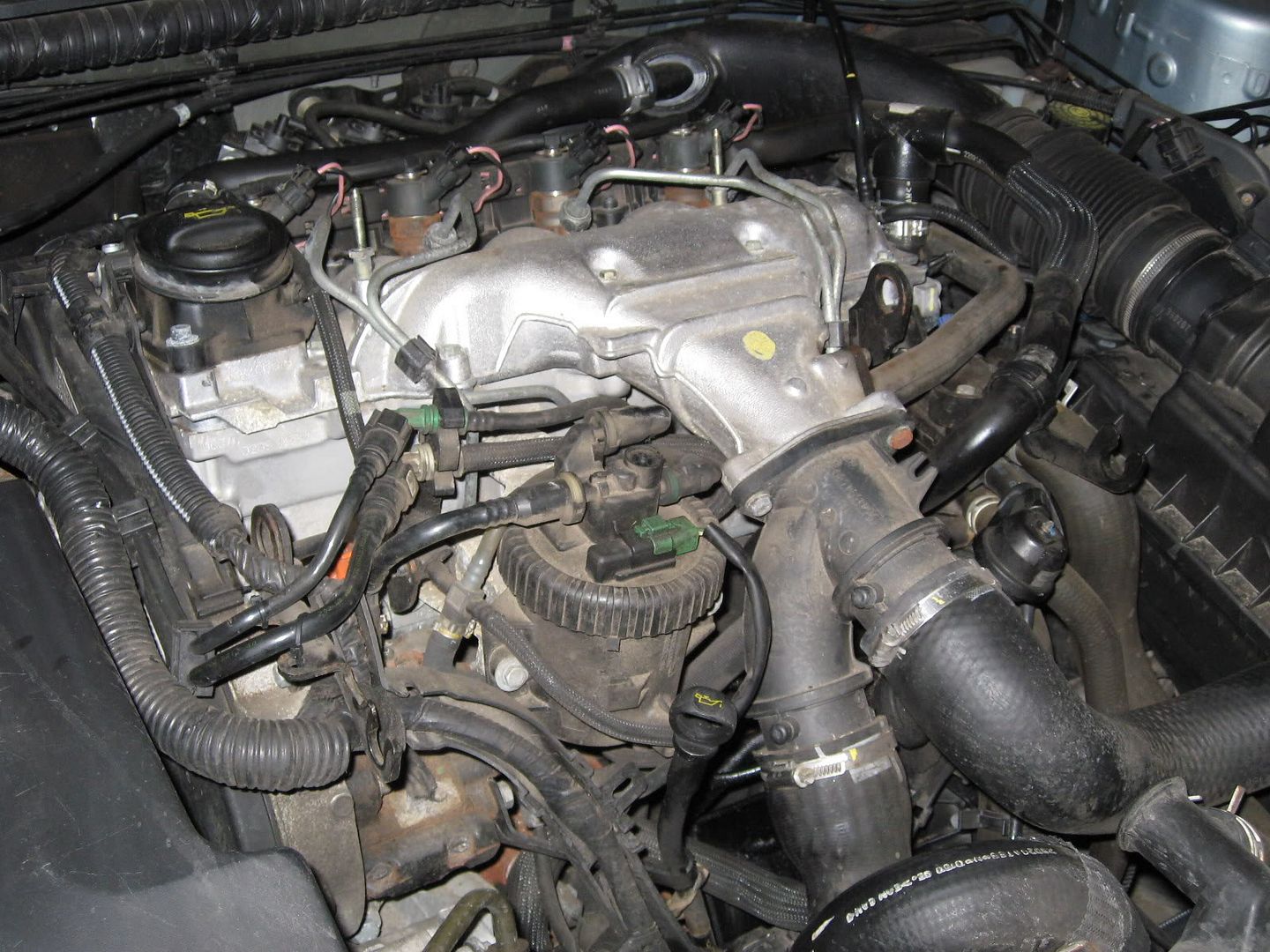

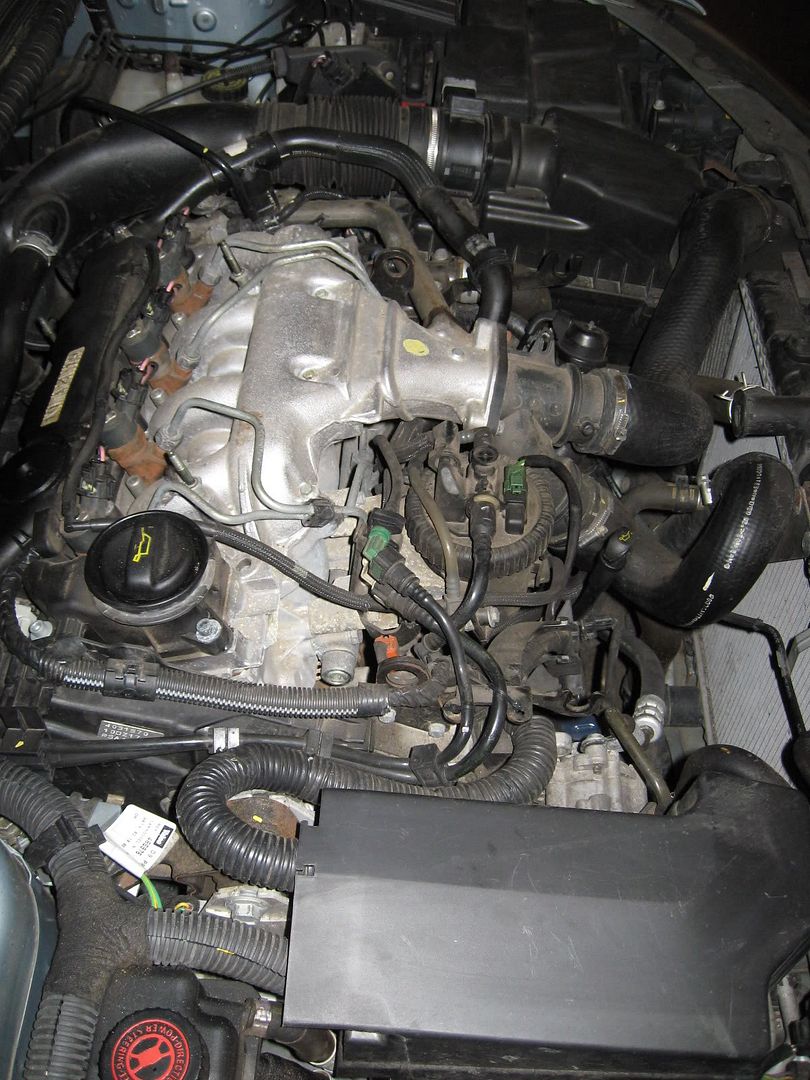

and without the cover:

[swiss]

http://www.pug406.com/wiki/index.php/XU ... -_1.9TD_8V

[highlander]

Took a reasonable snap of my engine this morning; just not sure what type it is

Mine is the 1.8l 16v petrol-engined 1999-registered D9, so I'm not sure if mine is an EW7 J4 - 1.8 16V or an XU7 JP4 - 1.8 16V. If someone can tell me which, I'll add my photos to the relevant page.

[averagejo]

Took a reasonable snap of my engine this morning; just not sure what type it is

Mine is the 1.8l 16v petrol-engined 1999-registered D9, so I'm not sure if mine is an EW7 J4 - 1.8 16V or an XU7 JP4 - 1.8 16V. If someone can tell me which, I'll add my photos to the relevant page.

if memory serves i think the XU was in the D8 and the EW in the D9......... although id wait till someone else confirmed that also

while we are on questions i can see my EW10J4 in the list but what is the RFR and RFV varients???????

[highlander]

According to the table on this page - http://www.pug406.com/wiki/index.php/Peugeot_406 - the RFR produces more Horsepower than the RFV.

The table was somewhat shamelessly "borrowed" from Wikipedia, though I adapted the links on our "borrowed" version to point to the articles on our Wiki. I have no way to verify any of its content, as I don't know much about engines.

[averagejo]

yeah i had seen that before but was more curious to know what RFR and RFV are - mainly to find out what i have and if the RFV can i adapt steal some RFR ponies

[highlander]

OK, you were right enough - the D9s got the EW7 J4 - 1.8 16V, so that's what I've got.

I've added the pic and a little description to the Wiki. Not the best photo ever, but it will do, at least for now.

[406Break]

I could clean it up if you'd like
EW10J4 99kW 2.0l (RFR)
